4248M
UPC: 6 71031 00548 9

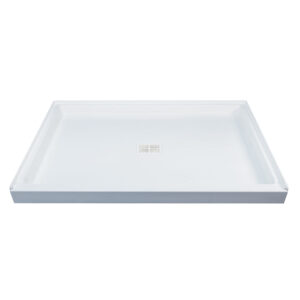

DURABASE® 42" x 48" Shower Floor - White
With a unique square strainer, this DURABASE® shower floor creates the ideal foundation to build a shower. If you’re looking to create a shower that will be both elegant and provide years of service, start with the best…DURABASE® Shower Floors, exclusively from E.L.Mustee & Sons., Inc.
- Width: 48"
- Depth: 42"
- Color: White
- Drain Location: Center
- Shape: Rectangular
- Style: Standard Threshold
Details
- Sturdy, 1-piece molded fiberglass construction — ribbed underbody for extra strength, slip resistant Starburst® surface
- Integral molded drain with seal for connection to 2″ Sch. #40 ABS, PVC or iron DWV sanitary drain pipe. See optional drain seals for 1-1/2″ pipe and 2″ copper — removable strainer
- Available in White
- Semi-gloss surface — resistant to mold and mildew, easy to clean
- Designed to be used with Mustee’s DURAWALL® shower walls, ceramic tile, or preformed wall kit
Certifications & Listings
- cUPC, ANSI International Association of Plumbing and Mechanical Officials® (IAPMO®)
- American National Standards Institute (ANSI) – Specification ANSI Z 124-2017
- CSA B45.5-17/ANSI Z124-2017
- American Society of Testing and Materials (ASTM) — E-84
- CAN/ULC S102-07 Burn and Smoke Test
Technical Documents
Specifications & Dimensions
General: Furnish and install as shown on plans. DURABASE® rectangular, single threshold shower floor model 4248M as manufactured by E.L. Mustee & Sons, Inc. Floor to be one-piece, molded fiberglass, made with matched metal molds. Surface to be slip-resistant Starburst® design that does not interfere with the flow of water. Size 42” x 48”. Shoulder will be no less than 3” high or less than 1” wide. Tiling flange will extend not less than 1” higher than the threshold which provides an integral molded water barrier. Threshold will be not less than 4 ½” high. Molded-in drain and drain seal for installation of 2” iron DWV (Sch. 40) PVC or ABS sanitary drain pipe. Removable strainer. ANSI Specification Z 124-2017. IAPMO (UPC/cUPC) Listed. Color: White
| A: | 48" |
| B: | 42" |
| C: | 21" |
| D: | 24" |
