390.306

UPC: 6 71031 00434 5

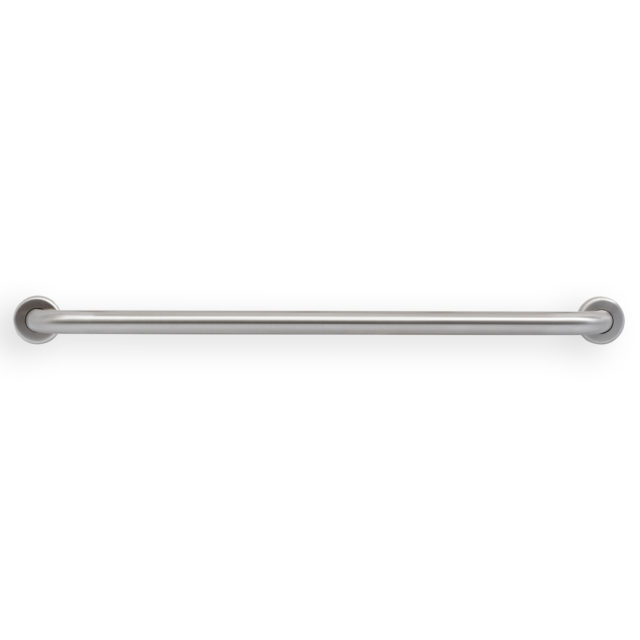

Caregiver® Grab Bars - 1-1/2" Straight - 36"

Featuring exceptional strength and rigidity, CareGiver® Safety Grab Bars represent the “best-in-category” for their combination of quality, exclusive features and overall performance. Whether you are designing for a health care facility or upgrading a home shower…go with the best in Grab Bars… CareGiver®…only from E.L. Mustee & Sons, Inc.

  • Length: 36"
  • Direction: Any
  • Mount: Wall-Mount
  • Shape: Straight
  • Type: Grab Bar

Details

  • Smooth stainless steel, 18 gauge tubing, satin finish, 1-½” diameter

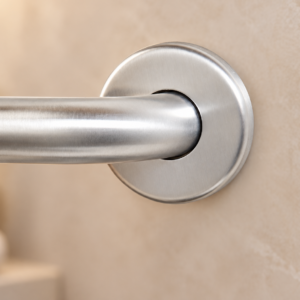

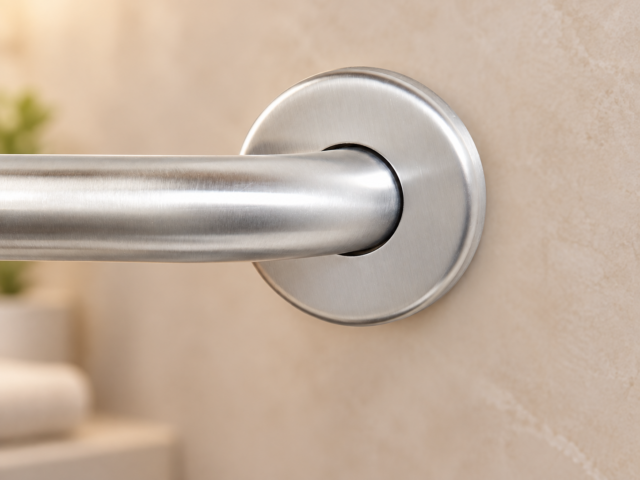

  • Exclusive, Twist-Lock concealed flange snaps into place for a secure, tamper-proof mounting

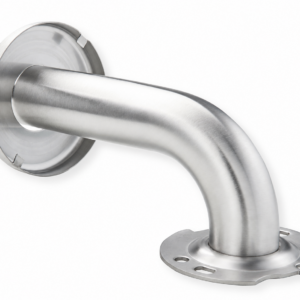

  • Stainless steel mounting flange is Heliarc welded to the tube to form a single, high strength structural unit that cannot be separated
  • All bars have a nominal offset distance of 1-½” (38mm)
  • Flat contact surface won’t cut or mar wall surfaces – bar remains stable without further tightening
  • 304 Stainless steel mounting flange, 14 gauge
  • Tested to withstand 500 lbs. of downward load…when properly installed

Certifications & Listings

  • American National Standards Institute (ANSI) A117.1
  • Meets or exceeds HUD, FHA, VA, ADA and other Federal/local codes

Technical Documents

Specifications & Dimensions

General: Furnish and install as shown on plans, Straight Safety Grab Bar model 390.306, as provided by E.L. Mustee & Sons, Inc. measuring 36" long with Twist-Lock concealed flange shall be 1-½” diameter, 18 gauge, type 304 stainless steel tubing. 14 gauge stainless steel mounting flange shall be Heliarc welded to the tube to form a single structural unit. Grab bar shall comply with applicable building codes. Meets ANSI A117.1
Mustee-grab-bar-straight
Size: 36"
