390.303
UPC: 6 71031 00361 4

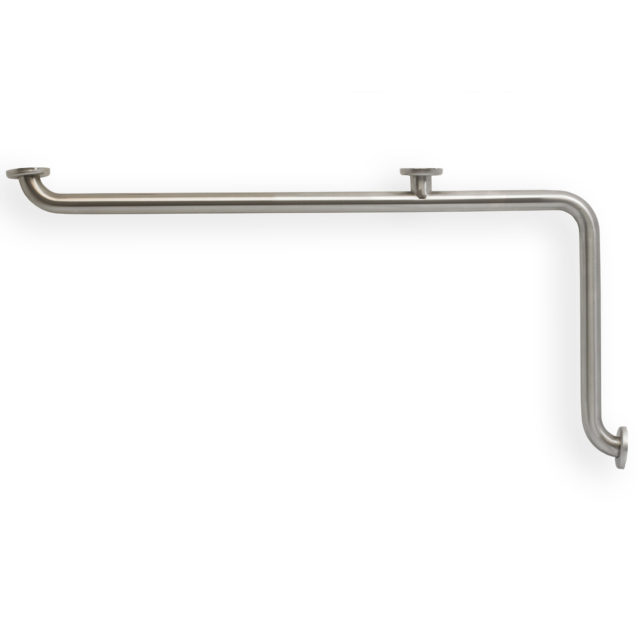

Caregiver® Grab Bars - 1-1/2" Inside Corner - 42" x 20"
Featuring exceptional strength and rigidity, CareGiver® Safety Grab Bars represent the “best-in-category” for their combination of quality, exclusive features and overall performance. Whether you are designing for a health care facility or upgrading a home shower…go with the best in Grab Bars… CareGiver®…only from E.L. Mustee & Sons, Inc.
- Length: 42" x 20"
- Direction: Any
- Mount: Wall-Mount
- Shape: Inside Corner
- Type: Grab Bar
Available in:
Details
- Smooth stainless steel, 18 gauge tubing, satin finish, 1-½” diameter

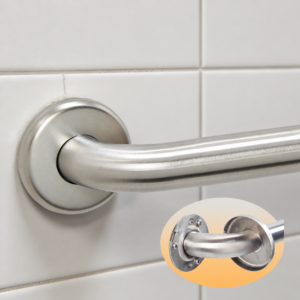

- Exclusive, Twist-Lock concealed flange snaps into place for a secure, tamper-proof mounting
- Stainless steel mounting flange is Heliarc welded to the tube to form a single, high strength structural unit that cannot be separated
- All bars have a nominal offset distance of 1-½” (38mm)
- Flat contact surface won’t cut or mar wall surfaces – bar remains stable without further tightening
- 304 Stainless steel mounting flange, 14 gauge
- Tested to withstand 500 lbs. of downward load…when properly installed
Certifications & Listings
- American National Standards Institute (ANSI) A117.1
- Meets or exceeds HUD, FHA, VA, ADA and other Federal/local codes
Technical Documents
Specifications & Dimensions
General: Furnish and install as shown on plans, Inside Corner-Style Safety Grab Bar model 390.303, as provided by E.L. Mustee & Sons, Inc. measuring 42" x 20" with Twist-Lock concealed flange shall be 1-½” diameter, 18 gauge, type 304 stainless steel tubing. 14 gauge stainless steel mounting flange shall be Heliarc welded to the tube to form a single structural unit. Grab bar shall comply with applicable building codes. Meets ANSI A117.1

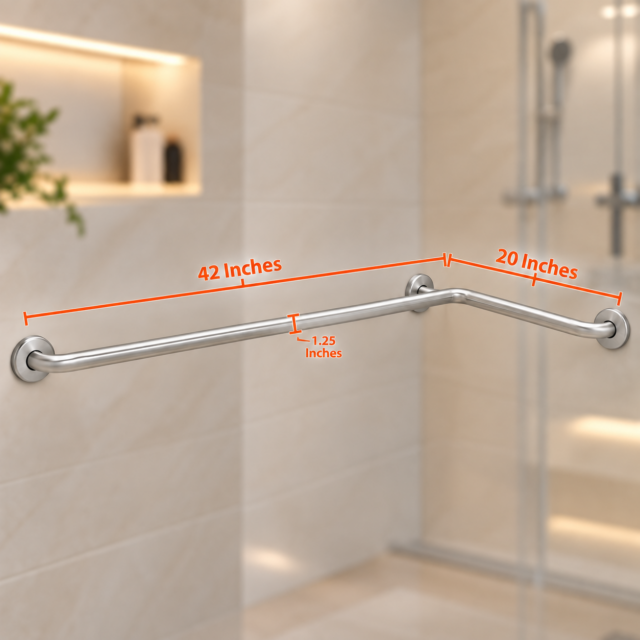

| A: | 42" |
| B: | 20" |
