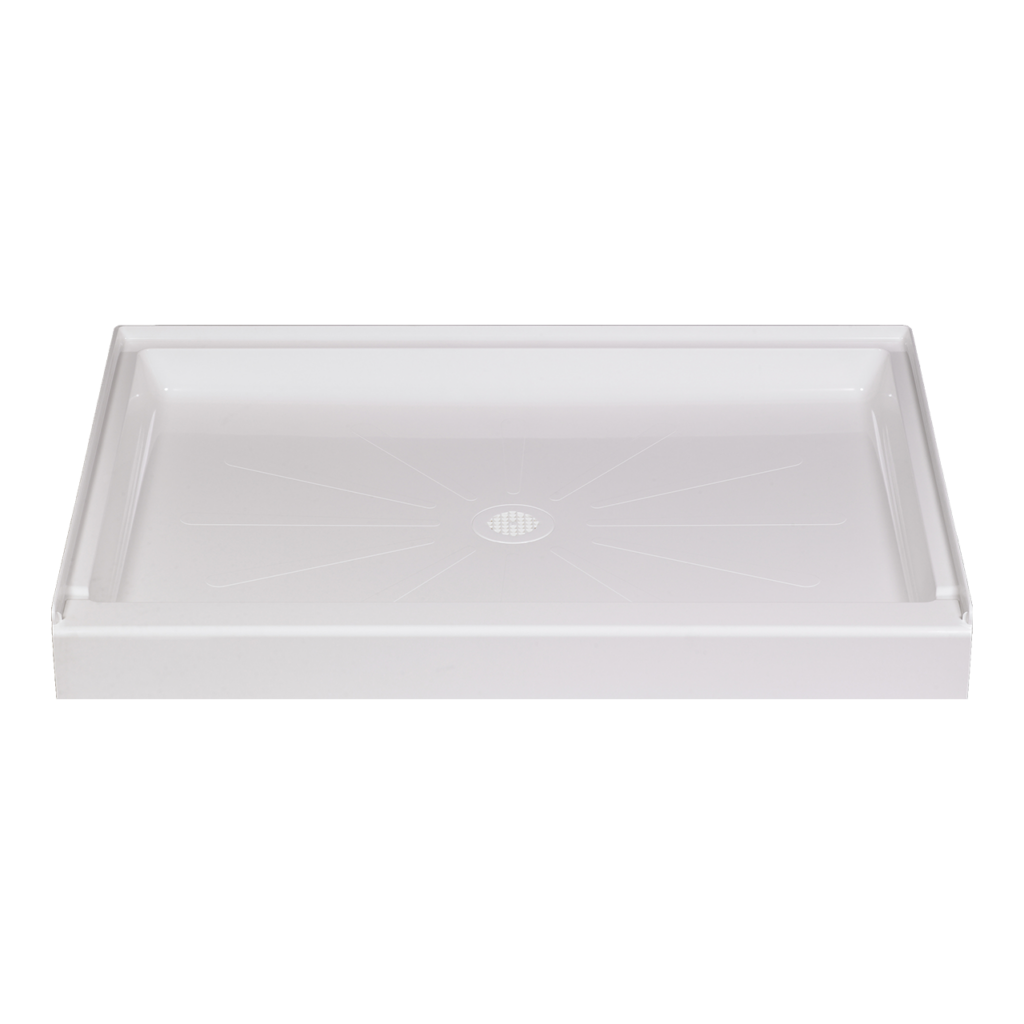

DURABASE® Fiberglass Shower Floors Rectangular, Single Threshold

DURABASE® Fiberglass Shower Floors Rectangular, Single Threshold
Design Features:
  • Sturdy, 1-piece molded fiberglass construction – structural underbody for strength, slip resistant Starburst ® surface
  • Integral molded drain with seal for connection to 2” Sch. #40 ABS, PVC or iron DWV sanitary drain pipe included. Additional drain seals for various pipe size and type available, optional.
  • Available in White, Biscuit, and Bone
  • Semi-gloss surface – resistant to mold and mildew, easy to clean
  • Designed to be used with Mustee’s DURAWALL® shower walls, ceramic tile or preformed wall kit
Code Accepted
  • International Association of Plumbing and Mechanical Officials® (IAPMO®)
  • Warnock Hersey® (Canada) Listed – CSA test standards Shower Floor
  • American National Standards Institute (ANSI) – Specification ANSI Z 124-2022
  • American Society of Testing and Materials (ASTM) – E-84
  • CAN/ULC S102-07 Burn and Smoke Test
Specifications
Model Nom. Size Color UPC A B C D
3248M 32” x 48” White 6 71031 00085 9 48″ 32″ 16″ 24″
3248BN 32” x 48” Bone 6 71031 00083 5 48″ 32″ 16″ 24″
3248BT 32” x 48” Biscuit 6 71031 00351 5 48″ 32″ 16″ 24″
3254M 32” x 54” White 6 71031 00091 0 54″ 32″ 16″ 24″
3260M 32” x 60” White 6 71031 00094 1 60″ 32″ 16″ 24″
3442M 34” x 42” White 6 71031 00105 4 42″ 34″ 17″ 21″
3442BN 34” x 42” White 6 71031 00103 0 42″ 34″ 17″ 21″
3448M 34” x 48” White 6 71031 00112 2 48″ 34″ 17″ 24″
3448BN 34” x 48” Bone 6 71031 00108 5 48″ 34″ 17″ 24″
3448BT 34” x 48” Bone 6 71031 00352 2 48″ 34″ 17″ 24″
3454M 34” x 54” White 6 71031 00118 4 54″ 34″ 17″ 27″
3460M 34” x 60” White 6 71031 00123 8 60″ 34″ 17″ 30″
3642M 36” x 42” White 6 71031 00519 9 42″ 36″ 18″ 21″
3648M 36” x 48” White 6 71031 00505 2 48″ 36″ 18″ 24″
3660M 36” x 60” White 6 71031 00506 9 60″ 36″ 18″ 30″
4236M 42” x 36” White 6 71031 00344 7 36″ 42″ 21″ 18″
4248M* 42” x 48” White 6 71031 00548 9 48″ 42″ 21″ 24″
4260M* 42” x 60” White 6 71031 00525 0 60″ 42″ 21″ 30″
  • *Square shower strainer
General: Furnish and install as shown on plans, DURABASE® Shower Floor Model: _______ , as manufactured by E. L. Mustee & Sons, Inc. Floor to be one-piece, molded fiberglass, made with matched metal molds. Surface to be slip-resistant Starburst® design. Size: _______” x _______”. Shoulder will be no less than 3″ high or less than 1″ wide. Tiling flange will extend not less than 1″ higher than the threshold which provides an integral molded water barrier. Threshold will be not less than 4 1⁄2″ high. Molded-in drain and drain seal for installation of 2″ iron DWV (Sch. 40) PVC or ABS sanitary drain pipe. Removable strainer. Shall meet ANSI Specification Z 124-2022. Color: _______ (White, Bone, Biscuit).
