390.404

UPC: 6 71031 00366 9

Caregiver® Fold-Down - LH - 32"

Premium quality CareGiver® seats create thoroughly comfortable, strong, good-looking shower seating. Possessing exceptional design features and long life, Mustee Wall-Mounted, fold-down shower seats are a great addition to any shower.

  • Length: 32"
  • Direction: Left-Hand
  • Mount: Wall-Mount
  • Shape: L-Shaped
  • Type: Fold Down Seat

Details

  • White L-shaped cushion seat filled with high-resilience, high-density foam to maintain original shape.
  • Smooth cushion edges without corded piping – eliminates discomfort for pressure-sensitive bathers.
  • Fire and mildew resistant.
  • When properly installed, wall-mount units can support up to 400 lbs.

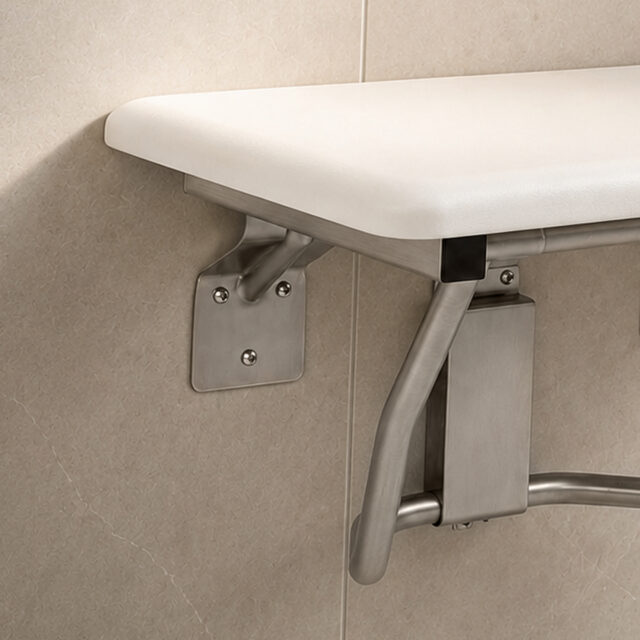

  • Rust-resistant stainless steel hardware.
  • Easy to install and clean – cushion surface is stain resistant.

Technical Documents

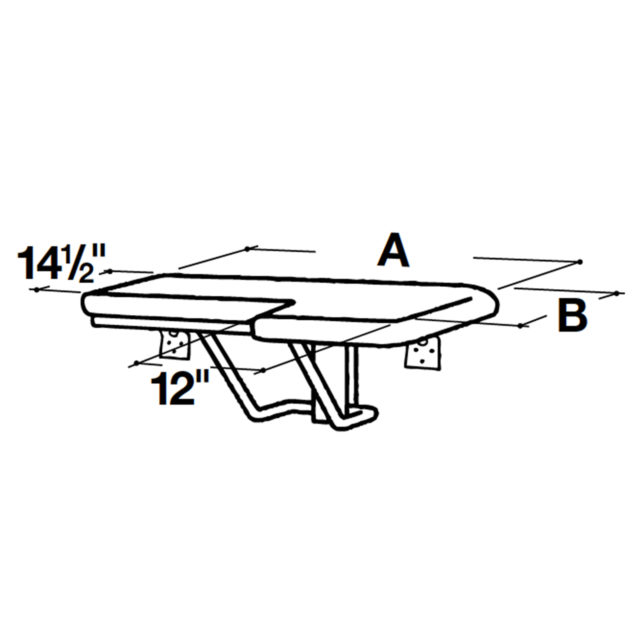

Specifications & Dimensions

General: Furnish and install as shown on plans, L-Shaped Fold-down Wall Mounted LH Shower Seat model 390.404, 32" long, as provided by E.L. Mustee & Sons, Inc. Shower seat tubing shall be one-inch diameter, 19 gauge, type 304 stainless steel with #4 satin finish. Mounting brackets shall be 12-gauge type 304 stainless steel. Padded vinyl cushion shall have 1-½” high density, Naugahyde. White cushion shall have no external piping. Shower seat unit shall comply with applicable building codes. Meets ANSI A117.1.

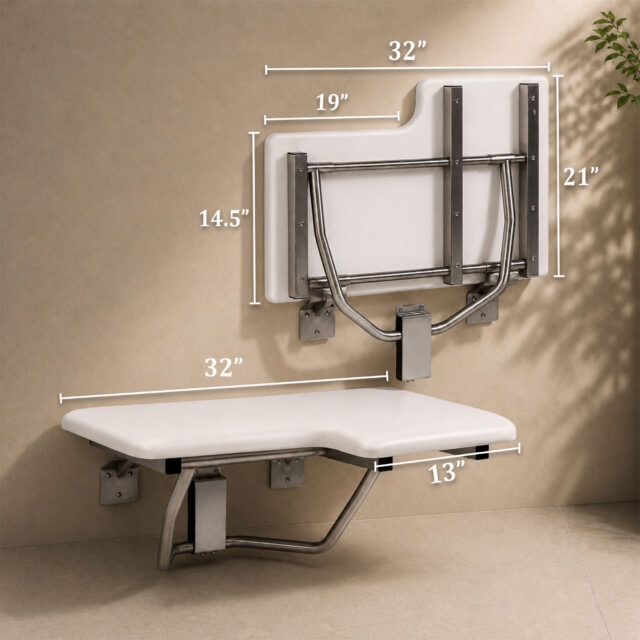

A: 32"
B: 21"
