680WHTBB

UPC: 6 71031 00550 2

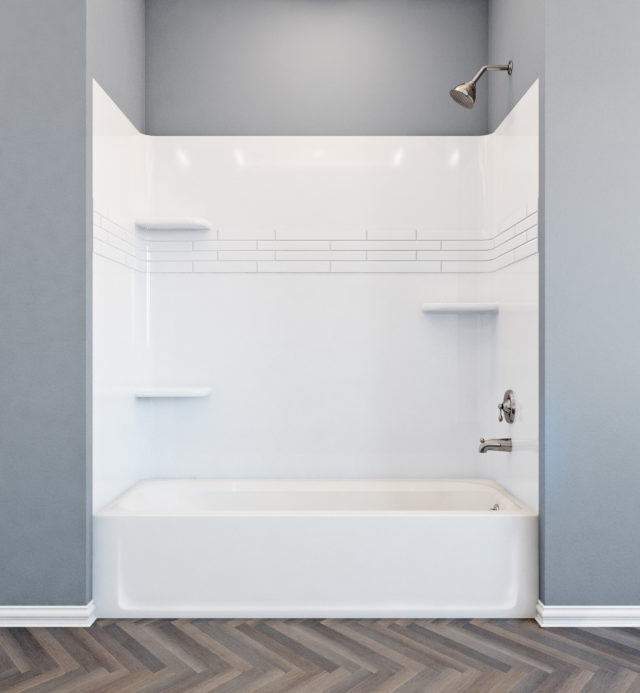

TOPAZ Premium Fiberglass Bathtub Wall, with installed backer boards - White

Mustee’s 680WHT Topaz Bathtub Wall White is now available with pre-installed backer boards for grab bars mounted at the factory. There are 6 backer boards placed to mount T-style grab bars (1.25” Dia. – 18 Gage S.S) per ADA.

  • Color: White
  • Installation Type: Direct-to-Stud
  • Material: Fiberglass
  • Tub Size: 30" x 60"

Details

  • Direct-to-stud mounted

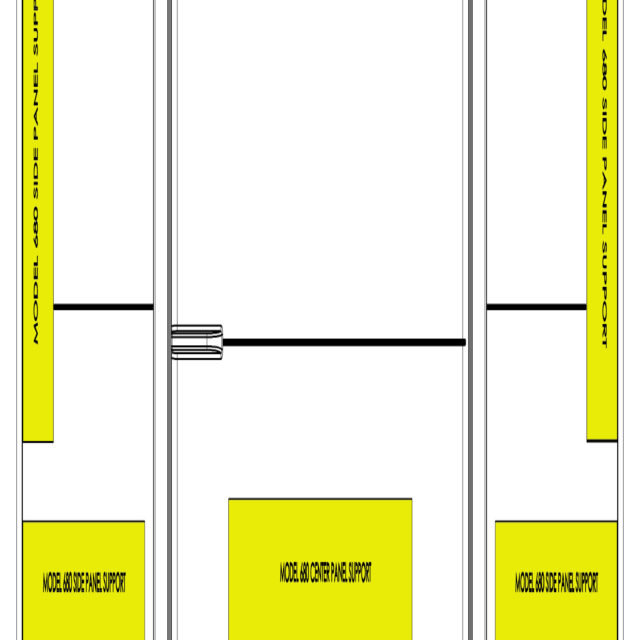

  • 6 backer boards placed to mount grab bars per ADA
  • Premium molded from Mustee’s proprietary VARISTONE® fiberglass
  • Sides interlock with center panel to form a blade & groove seal
  • Semi-gloss, mold/mildew-resistant finish
  • Fits standard 30″ x 60″ alcove

Certifications & Listings

  • UPC, ANSI International Association of Plumbing and Mechanical Officials® (IAPMO®)
  • American National Standards Institute (ANSI) – Specification ANSI Z 124-2022
  • American Society of Testing and Materials (ASTM) — E-84
  • CAN/ULC S102-07 Burn and Smoke Test

Technical Documents

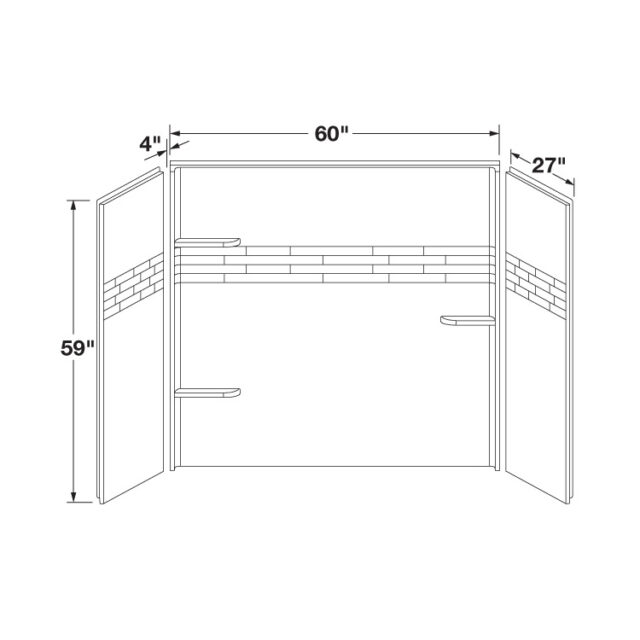

Specifications & Dimensions

General: Furnish and install as shown on plans, 680 TOPAZ® bathtub walls with embossed tile pattern as manufactured by E.L. Mustee & Sons, Inc. Shall be semi-gloss, three-piece wall. Panels are molded fiberglass using matched metal molds under extreme heat and pressure with a uniform thickness of 125 mils and mount direct-to-stud walls. Includes center panel with molded-in shelf and two side panels. Self-aligning panels using a tongue-and-groove connection. ANSI Specification Z 124-2017. IAPMO (UPC/cUPC) Listed. Color: White. Install in compliance with local codes. Includes factory installed supports for installation of grab bars at a later date, per ADA.
Fits Alcove: 30" deep by 60" wide
