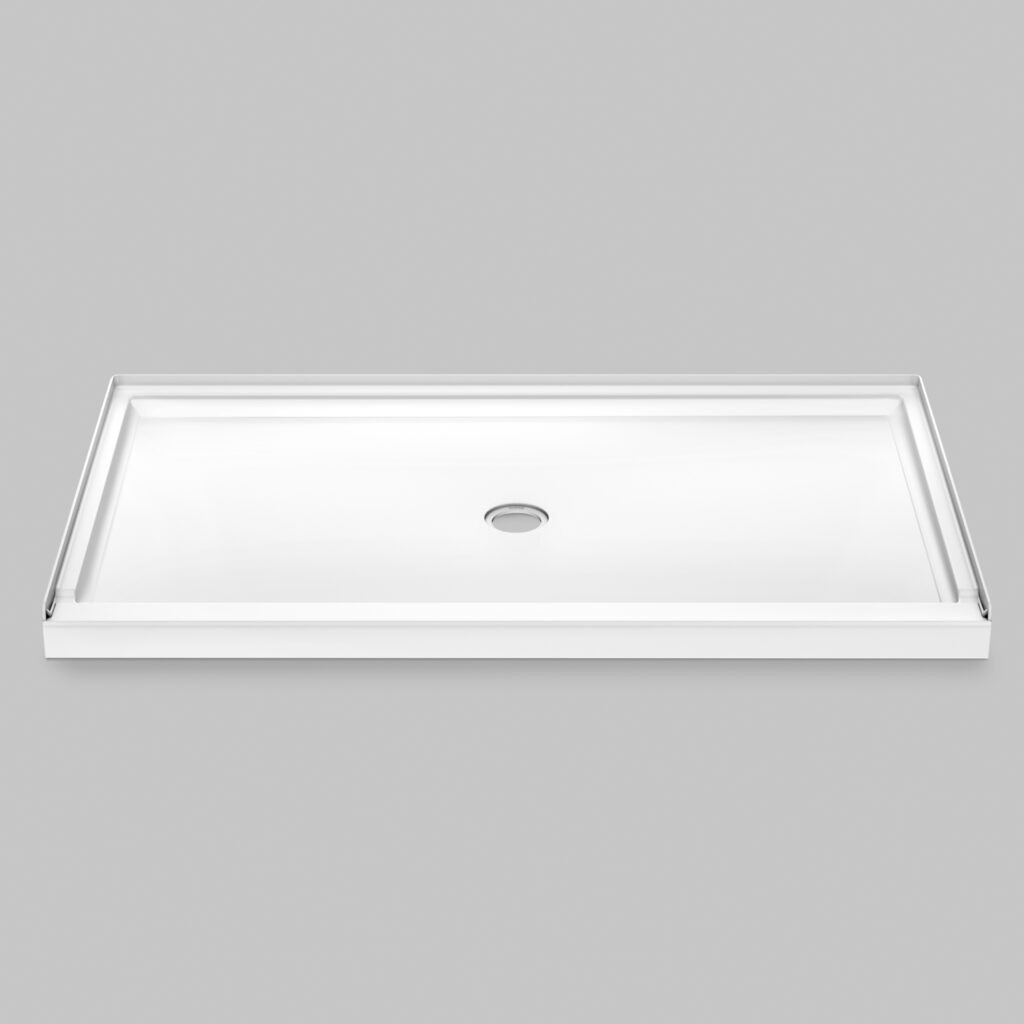

DURABASE-LP® Fiberglass Shower Floors, Low Profile Threshold

Design Features:

Sturdy, 1-piece molded fiberglass construction — ribbed underbody for extra strength, slip resistant pebble grain surface
Semi-gloss surface — resistant to mold and mildew, easy to clean
2 1/2″ front threshold to easier access
Center drain opening accommodates multiple third-party drain assemblies
Designed to be used with Mustee’s DURAWALL® shower walls, ceramic tile, or preformed wall kit
Available in White

Code Accepted

International Association of Plumbing and Mechanical Officials® (IAPMO®) Listed UPC
IAPMO tested to the CSA standards: Shower Floor
American National Standards Institute (ANSI) – Specification ANSI Z 124-2022
American Society of Testing and Materials (ASTM) — E-84
CAN/ULC S102-07 Burn and Smoke Test

Specifications

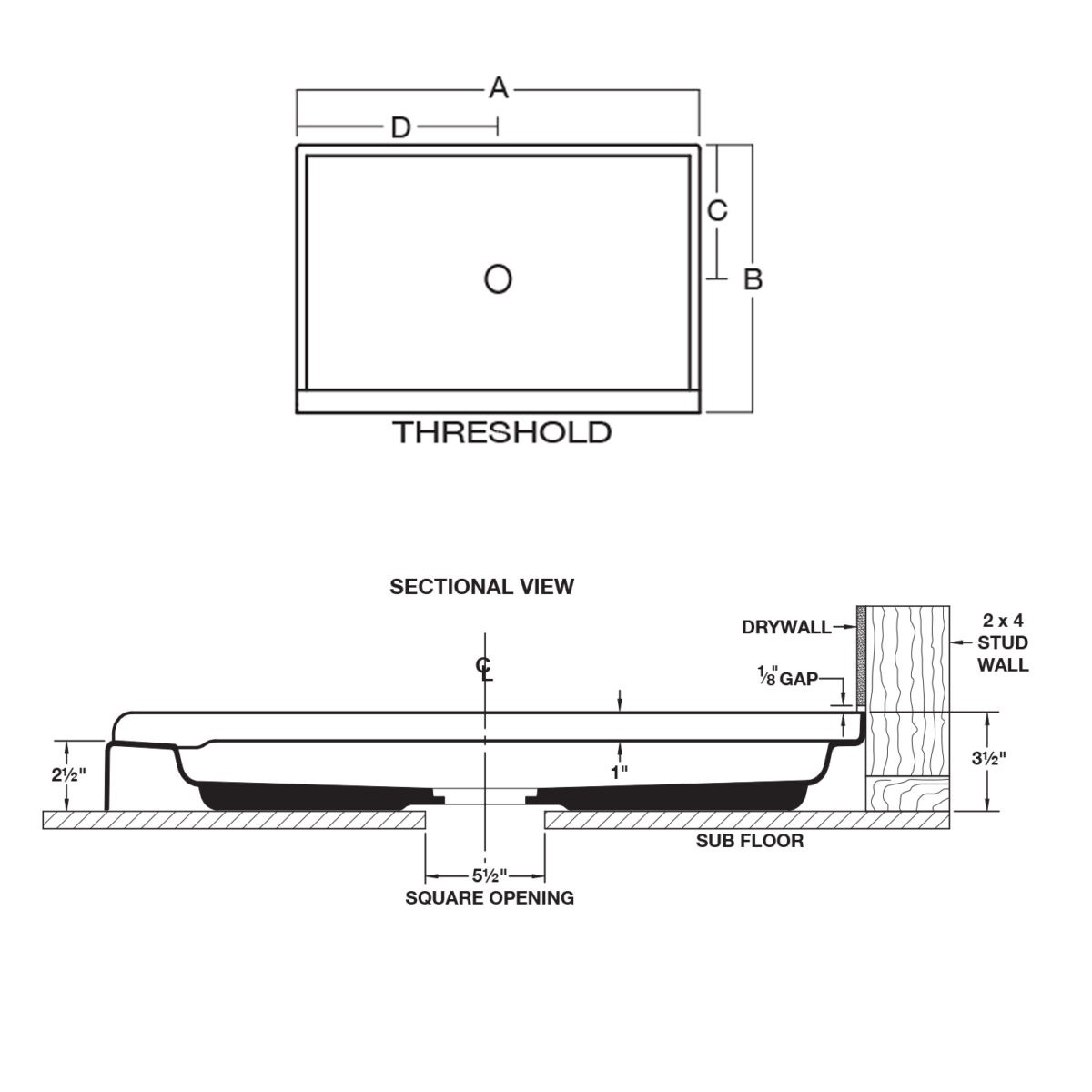

Model	Nom. Size	Color	UPC	A	B	C	D
3636LP	36″ x 36″	White	6 71031 00606 6	36″	36″	18″	18″
3248LP	32″ x 48″	White	6 71031 00607 3	48″	32″	16″	24″
3448LP	34″ x 48″	White	6 71031 00608 0	48″	34″	17″	24″
3460LP	34″ x 60″	White	6 71031 00609 7	60″	34″	17″	30″
3660LP	36″ x 60″	White	6 71031 00610 3	60″	36″	18″	30″

General: DURABASE-LP® rectangular, single threshold shower floor Model: ______ as manufactured by E.L. Mustee & Sons, Inc. Floor to be one-piece, molded fiberglass, made with matched metal molds. Surface to be slip-resistant Pebble Grain design. Size ___” x ___”. Tiling flange will extend not less than 1″ higher than the threshold which provides an integral molded water barrier. Threshold will be not less than 2 ½” high. Center drain opening accommodates multiple third-party drain assemblies. ANSI Specification Z 124-2022. Color: White
