DURABASE® Fiberglass Shower Floors Corner, Double Threshold

DURABASE® Fiberglass Shower Floors Corner, Double Threshold
Design Features:
  • Sturdy, 1-piece molded fiberglass construction — ribbed underbody for extra strength, slip resistant Starburst® surface
  • Integral molded drain with seal for connection to 2” Sch. #40 ABS, PVC or iron DWV sanitary drain pipe included. Additional drain seals for various pipe sizes and types available, optional.
  • Available in White
  • Semi-gloss surface — resistant to mold and mildew, easy to clean
  • Designed to be used with Mustee’s DURAWALL® shower walls, ceramic tile or preformed wall kit
Code Accepted
  • International Association of Plumbing and Mechanical Officials® (IAPMO®)
  • Warnock Hersey® (Canada) Listed – CSA test standards Shower Floor
  • American National Standards Institute (ANSI) – Specification ANSI Z 124-2022
  • American Society of Testing and Materials (ASTM) – E-84
  • CAN/ULC S102-07 Burn and Smoke Test
Specifications

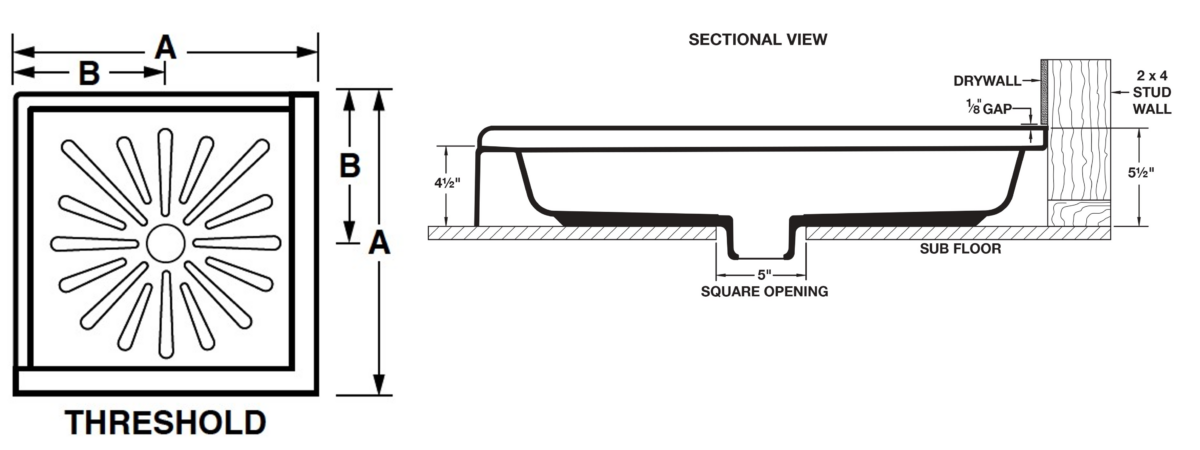

Model Nom. Size Color UPC A B
3434DTM 34″ x 34″ White 6 71031 00098 9 34″ 17″
3636DTM 36″ x 36″ White 6 71031 00144 3 36″ 18″

General: Furnish and install as shown on plans, DURABASE® Shower Floor Model: _______ , as manufactured by E. L. Mustee & Sons, Inc. Floor to be one-piece, molded fiberglass, made with matched metal molds. Surface to be slip-resistant Starburst® design. Size: _______” x _______”. Shoulder will be no less than 3″ high or less than 1″ wide. Tiling flange will extend not less than 1″ higher than the threshold which provides an integral molded water barrier. Threshold will be not less than 4 1⁄2″ high. Molded-in drain and drain seal for installation of 2″ iron DWV (Sch. 40) PVC or ABS sanitary drain pipe. Removable strainer. Shall meet ANSI Specification Z 124-2022. Color: _______ (White).
