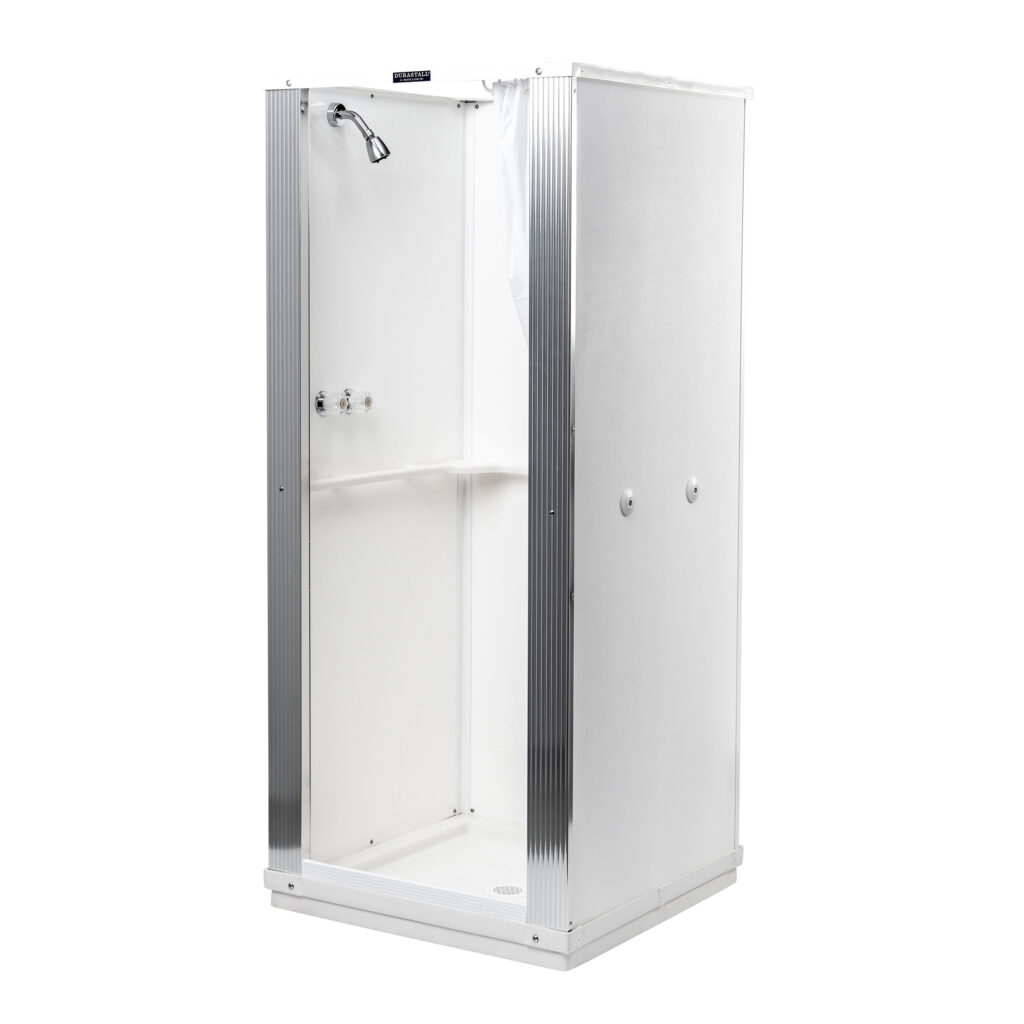

80 DURASTALL ® Shower Stall 32″ x 32″

80 DURASTALL ® Shower Stall 32″ x 32″
Design Features:
  • Slip-resistant floor with drain
  • Shower valve and head
  • Shower curtain and curtain rod
  • Safety railing with molded-in soap dish and shampoo holder
  • Mold and mildew-resistant components
  • Knock-down construction makes portability extremely easy and is free-standing when assembled
  • Easy to assemble and install
Specifications
Model Color Size Base A B C D UPC
80 White 32″ x 32″ Standard 32 5/8″ 75 3/8″ 16 5/16″ 24″ 6 7103100314 0

General: Furnish and install as shown on plans, free-standing DURASTALL® Shower Stall model 80 as manufactured by E.L. Mustee & Sons, Inc. Consists of three, white, high-gloss thermoplastic walls, molded top frame, rigid aluminum front supports, slip-resistant 32″ x 32″ base with drain assemble, wrap-­around railing with built-in soap dish and container, shower valve and head, shower curtain and rod. Placement of valve assembly to be determined by installer.

Accessories

Glass Shower Doors – Install to open from either side
Features aluminum frames with magnetic latch, obscure, tempered safety glass panel.

Model Opening Height Fits DURASTALL® Models
80.700 24″ 64″ 80

Extended Base Kit – Extension raises the base up 2 3/4″
Add this kit to the bottom of the standard base. This allows you to run a 1 1/2″ PVC pipe (not included) from under the shower floor, on top of the sub-floor to an existing drain.

Model Max. Size Fits DURASTALL® Models
86.500 36″ x 36″ x 2 3/4″ 80, 140
