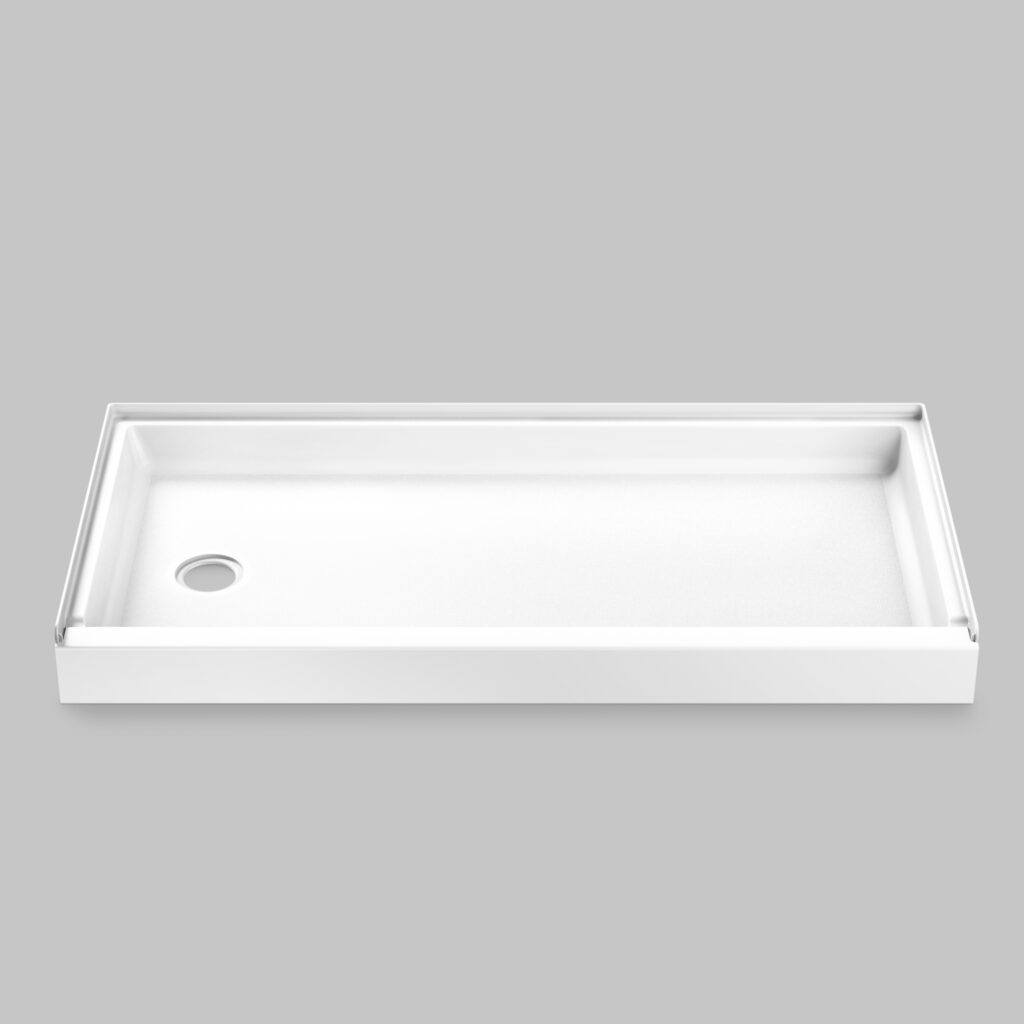

DURABASE® 3060 Fiberglass Shower Floors

DURABASE® 3060 Fiberglass Shower Floors
Design Features:
  • Fits the same footprint as a standard 30″ x 60″ bathtub
  • High quality molded fiberglass construction, with Left or Right hand drain
  • Drain location offset 8¬1/2″ x 15″; right and left-hand models
  • Accommodates standard 2″ drain or 60.300 Drain Kit
  • Mold and mildew-resistant, easy to clean, available in White and Bone
Code Accepted
  • International Association of Plumbing and Mechanical Officials® (IAPMO®)
  • Warnock Hersey® (Canada) Listed – CSA test standards Shower Floor
  • American National Standards Institute (ANSI) – Specification ANSI Z 124-2022
  • American Society of Testing and Materials (ASTM) – E-84
  • CAN/ULC S102-07 Burn and Smoke Test
Specifications
Model Description Drain Location Fits Alcove UPC
3060R White RH 30” x 60” 6 71031 00355 5
3060RBN Bone RH 30” x 60” 6 71031 00356 0
3060L White LH 30” x 60” 6 71031 00357 7
3060LBN Bone LH 30” x 60” 6 71031 00358 4

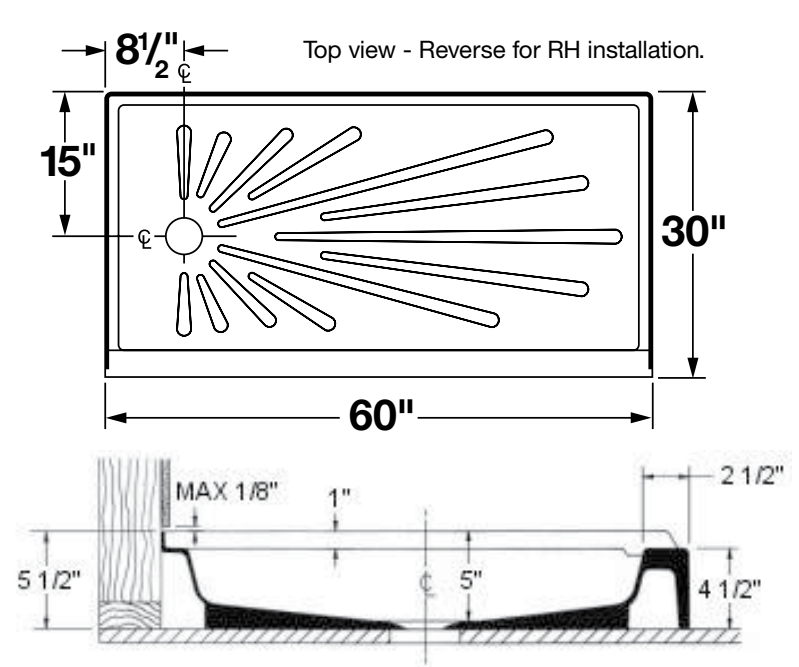

General: Furnish and install as shown on plans, Model 3060 as manufactured by E.L. Mustee & Sons, Inc. Floor to be one piece, molded fiberglass, using matched metal molds under extreme heat and pressure. Surface to be slip-resistant design. Size: 30” x 60”. Flood level rim will be not less than 3”
high. Tiling flange will extend not less than 1” higher than the threshold which is an integral molded water barrier. Threshold will be 4-1/2” high. Drain hole offset 8­1/2″ by 15″ to accept drain kit for 2″ PVC, ABS or iron DWV pipe. Available on right or left hand. Color ____(White, Bone).
