20 Bar Sink

20 Bar Sink
Design Features:
  • Molded using matched metal molds with premium fiberglass blended with special resins for extra strength and durability
  • 3 gallon capacity
  • Extra deep bowl – self-rimming
  • 3-1/2″ reinforced drain opening – fits standard basket drain assembly (not included)
  • Connects to standard 1-1/2″ P or Strap
  • Accommodates single or dual handle faucet with 4″ center
  • Available in white
  • Stain resistant, semi-gloss, colorfast finish
  • Easy to clean
Code Accepted
  • International Association of Plumbing and Mechanical Officials (IAPMO)® Listed
  • Warnock Hersey® (Canada) Listed-CSA #B45.0 and #B45.5
  • American National Standards Institute (ANSl)-Specification Z 124-2022

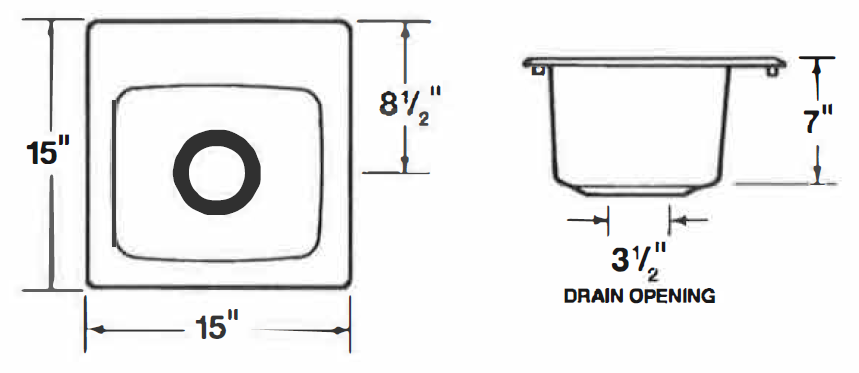

Specifications
Model No. Color UPC Dimension Length Width Depth
20 White 6 71031 00236 5 Overall 15″ 15″ 7 3/4″
Inside Bowl 10″ 12″ 7″
Countertop Cutout 13 1/2″ 13 1/2″ –

General: Furnish and install as shown on plans a DURASTONE® Bar Sink Model 20, as manufactured by E.L. Mustee & Sons, Inc. Material composition shall be molded fiberglass, using matched metal dies under heat and pressure. One-piece, seamless construction with self-rimming edge. Shall meet ANSI Z 124-2022. Overall size 15″ length x 15″ width x 7-3/4″ depth, weight 7 lbs. Color: __ (White).
