98
UPC: 6 71031 00299 0
DURAPAN™ Fiberglass Washer/Water Heater Pan
It only takes a few moments for a leaking clothes washer or water heater to cause thousands of dollars in damage to your home and its furnishings. The best solution is DURAPAN™ protection under washers or water heaters.
- Drain Position: Side Outlet Drain
Details
- Rugged one-piece molded fiberglass construction.
- Removable front threshold simplifies washer or water heater placement.
- Side outlet solvent weld 1″ DWV 90° elbow fitting (furnished), mounts to side curb for connection to a remote drain using 1” PVC piping (not included).
- Remains stationary, can be easily secured to floor (hardware included).
- Easy to install and clean.
- Mildew-resistant, colorfast semi-gloss white finish.
Certifications & Listings
- American Society of Testing and Materials (ASTM) — E-84
- IAPMO-IGC 200-2004
- Complies to applicable sections of ANSI Z124.1.2
Technical Documents

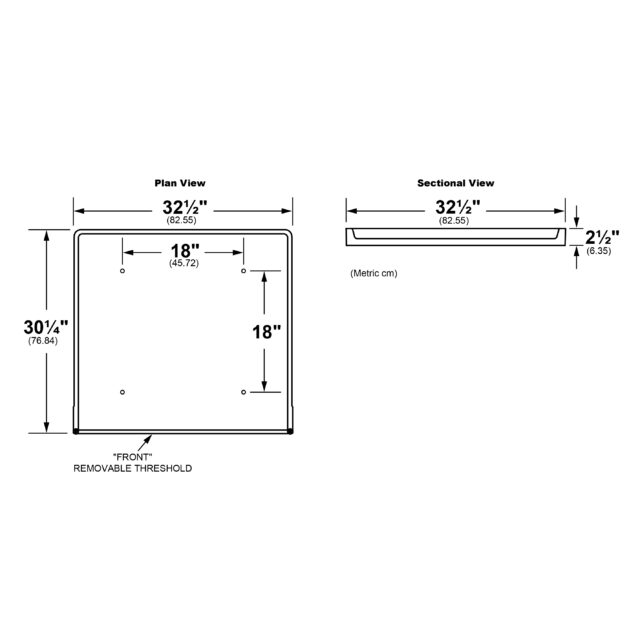

Specifications & Dimensions
General: Furnish and install as shown on plans, DURAPAN™ Washer and Water Heater Pan Model 98, as manufactured by E.L. Mustee & Sons, Inc. One-piece compression molded fiberglass, using matched metal molds under extreme heat and pressure. Shoulder will be no less than 2-1/2" high. Removable threshold with water tight seal secured by stainless steel screws. May be secured to sub-floor, mounting hardware provided. Shall include (1) 1" NPSM-90° elbow fitting. Shall meet IAPMO (IGC 200-2017e1) Listed. Color: White.
| Inside Size: | 28" x 29-1/4" x 2" |
| Overall Size: | 30-1/4" x 32-1/2" x 2-1/2" |
